Tumor Case

Craniotomy for Acoustic Neuroma

This is a 48 year old male with many years of hearing loss in the right ear.

Description

He has a known diagnosis of an acoustic neuroma (aka. vestibular schwannoma). He was diagnosed 8 years prior.

Gallery

Images

Pre-0pMRI performed 9 years prior to presentation. Shows very small lesion in the right internal acoustic canal (IAC, red arrow)
Figure 1Contrast enhanced MRI of the brain 3 years prior to presentation. It shows a definitive tumor in the right IAC (red arrows) on axial (left) and coronal (right) views. It has shown definitive growth compared with prior study (Figure 1)
Figure 2Contrast enhanced MRI of the brain 2 ½ years prior to presentation. It continues to show definitive tumor in the right IAC on axial (left) and coronal (right) views. It appears similar to MRI performed 6 months prior (Figure 2)

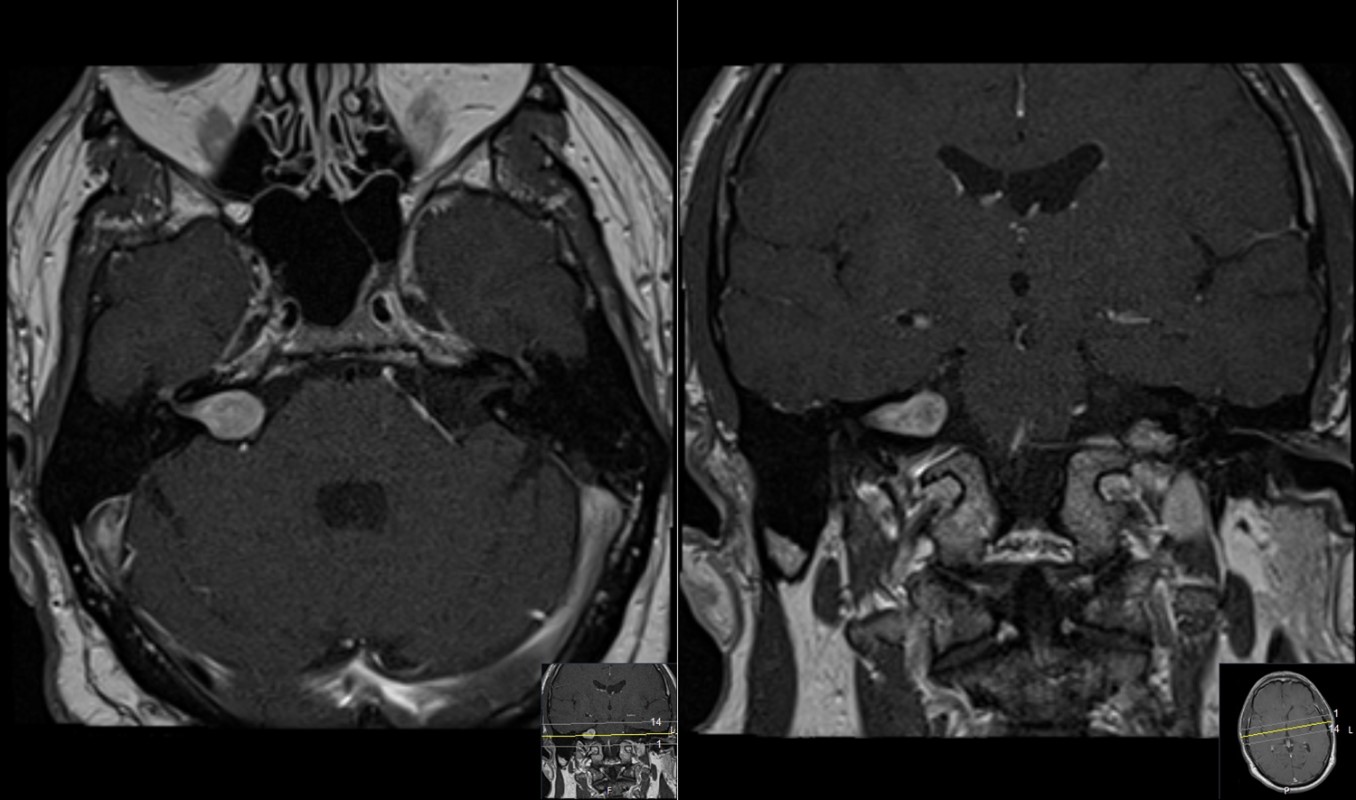

Figure 3Contrast enhanced MRI of the brain 1 year prior to presentation. It shows a definitive tumor in the right IAC on axial (left) and coronal (right) views. It has shown definitive growth compared with study performed 1 year prior (Figure 3).

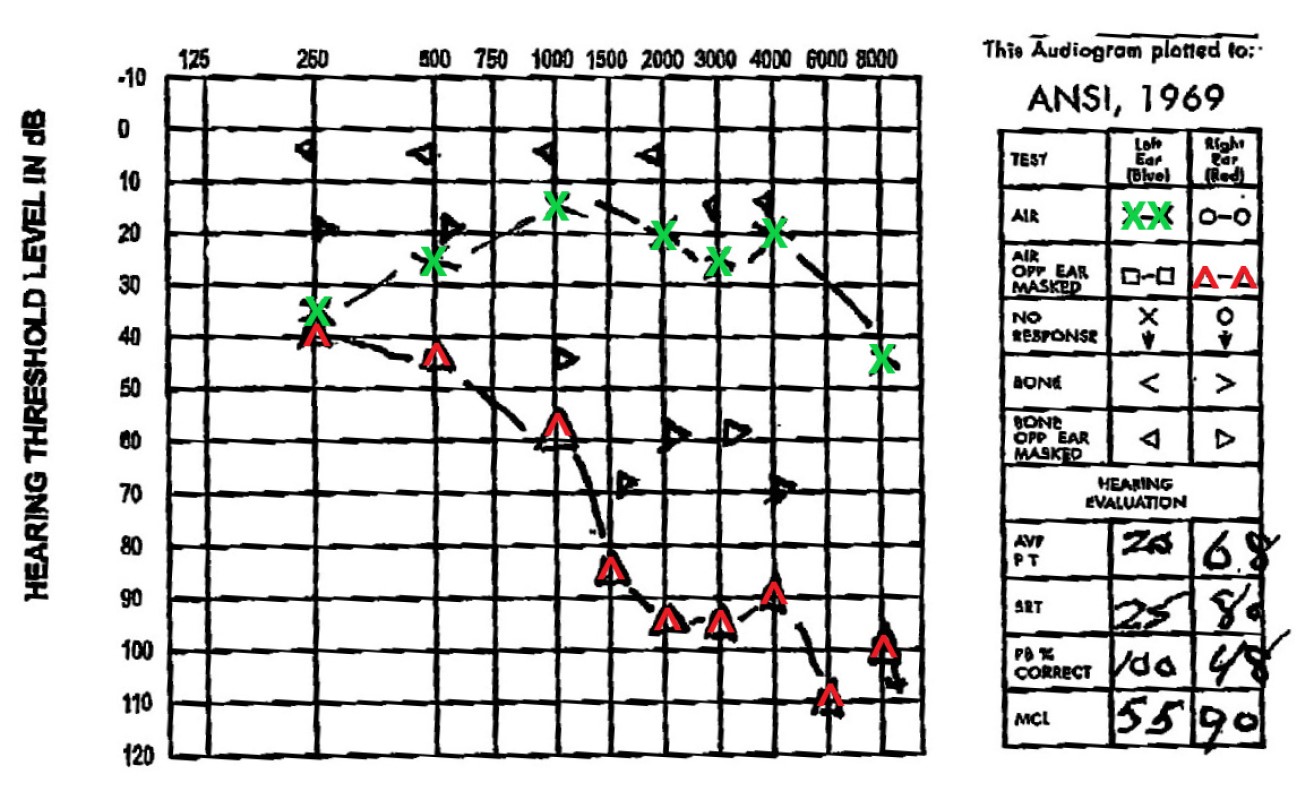

Figure 4Audiogram performed prior to surgery. It shows the minimum volume of sound (in dB) that can be heard at various frequencies (low to high) in both ears. Left ear (green X) is relatively normal showing a threshold in the range of 10 to 20 dB for typical frequencies. Right ear (red ^) is abnormal showing patient requires 80 to 100 dB of amplification to hear sounds in the 1500 to 6000 Hz range. A typical vacuum cleaner runs at about 70dB and a chainsaw at 100 dB.
Figure 5Preop volumetric MRI showing tumor in axial (top left), coronal (bottom left), and sagittal (top right) planes along with 3D rendering of the head (bottom right).

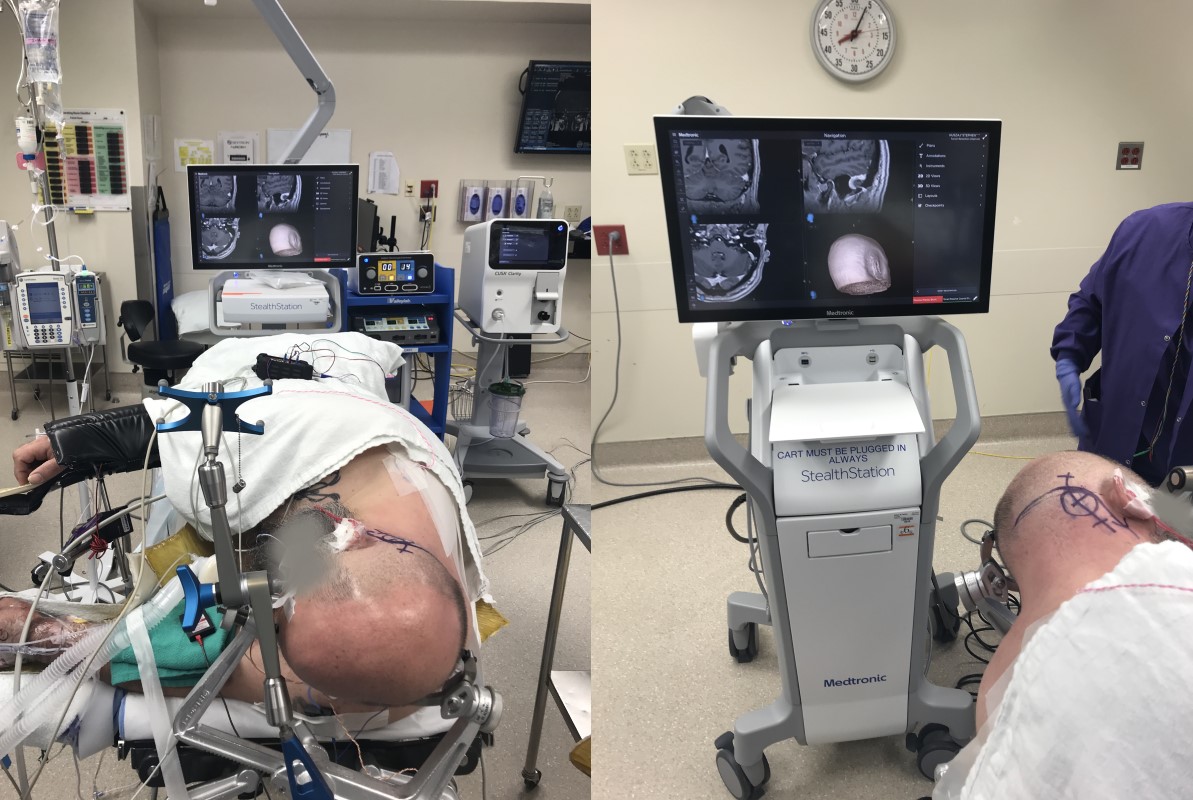

Figure 6Photograph demonstrating patient positioning for the operation. The patient is lying on his left side. Surgical landmarks and an incision have been marked out behind the right ear. Also note the operating room equipment.
Figure 7Intraoperative photo acquired from the surgical microscope. It shows the initial views of the tumor. The blue arrow ahs been placed over the bony that lies over the IAC (the porus acusticus) and is pointing at the tumor. Note the instrument approaching the tumor from the left of the frame – it is the image-guided probe seen in Figure 9.

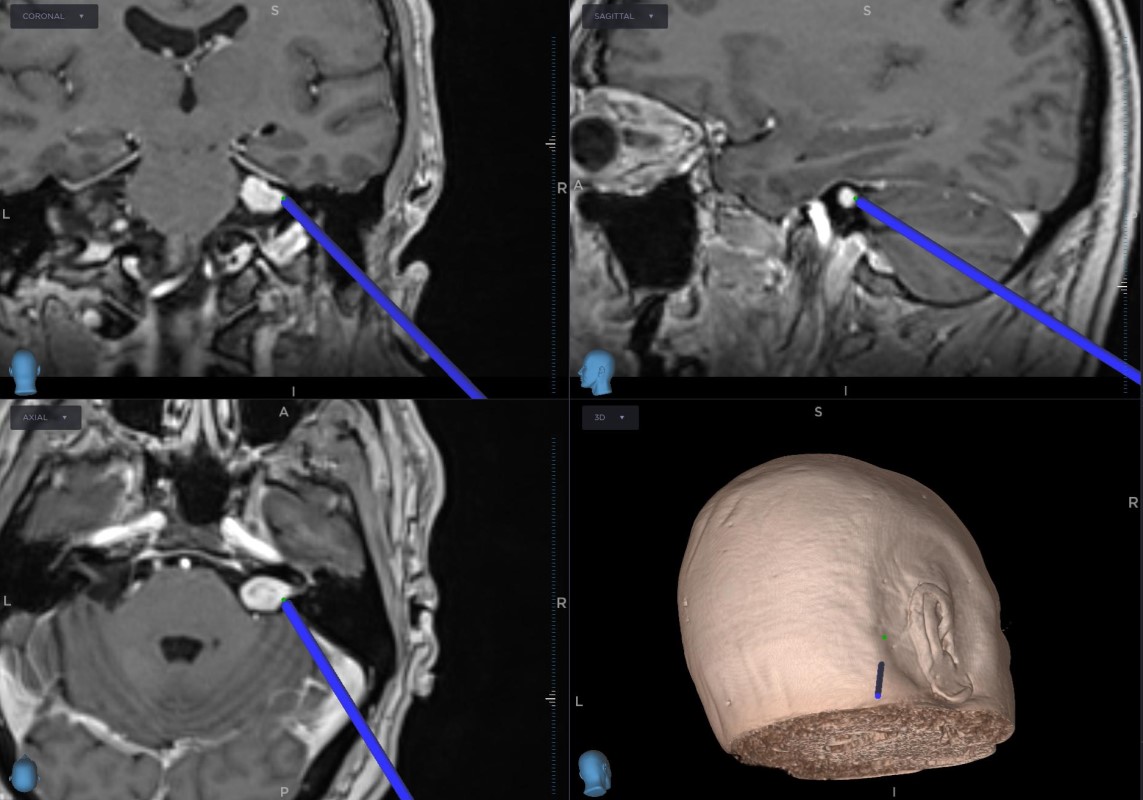

Figure 8Image captured from the intraoperative navigation system during the operation. It shows an image-guided instrument touching the superficial surface of the tumor as it is initially approached. See Figure 8 for the intraoperative photo demonstrating the same approach.
Figure 9Intraoperative photo acquired with the surgical microscope. The posterior edge of the porus acusticus has been drilled and the tumor has been removed. The blue arrow is pointing at the facial nerve and is in similar position as Figure 8. Note that the trigeminal nerve (white structure to left of facial nerve) can now been seen.
Video captured through surgical microscope. The tumor has been resected and the scope is moving to demonstrate the surgical site and local anatomy of the cranial base.

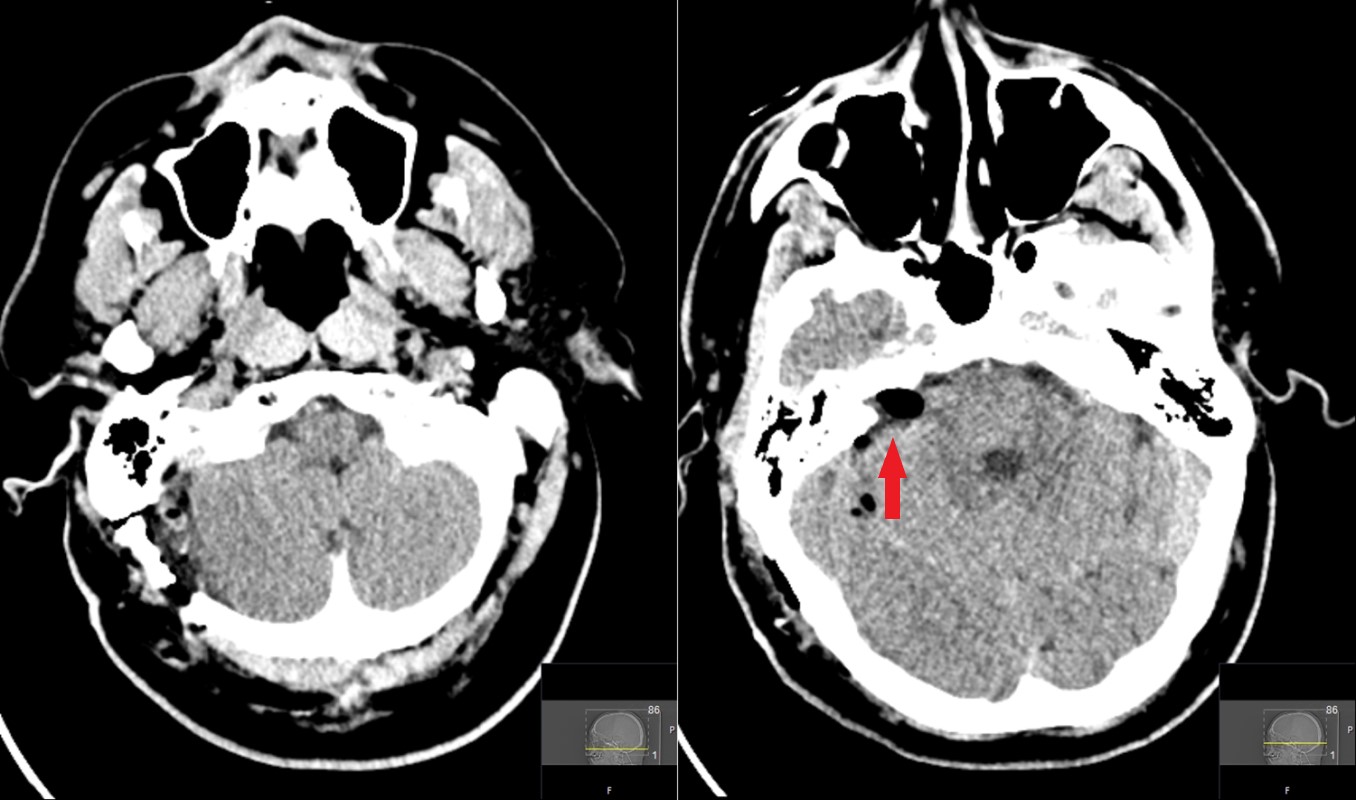

Figure 11Immediate postop CT scan. Left panel shows the opening in the skull used to access the tumor (craniotomy) and the right panel shows a pocket of air from where the tumor has been resected (arrow).
Figure 12Postop CT obtained about 2 weeks after surgery. It shows widening of the right IAC (red arrows) when compared to the left. It also shows how the IAC was opened during the surgery to remove the tumor (blue arrow) and the 3D rendering (bottom right) shows the craniotomy (with titanium mini-plates) (green arrow)

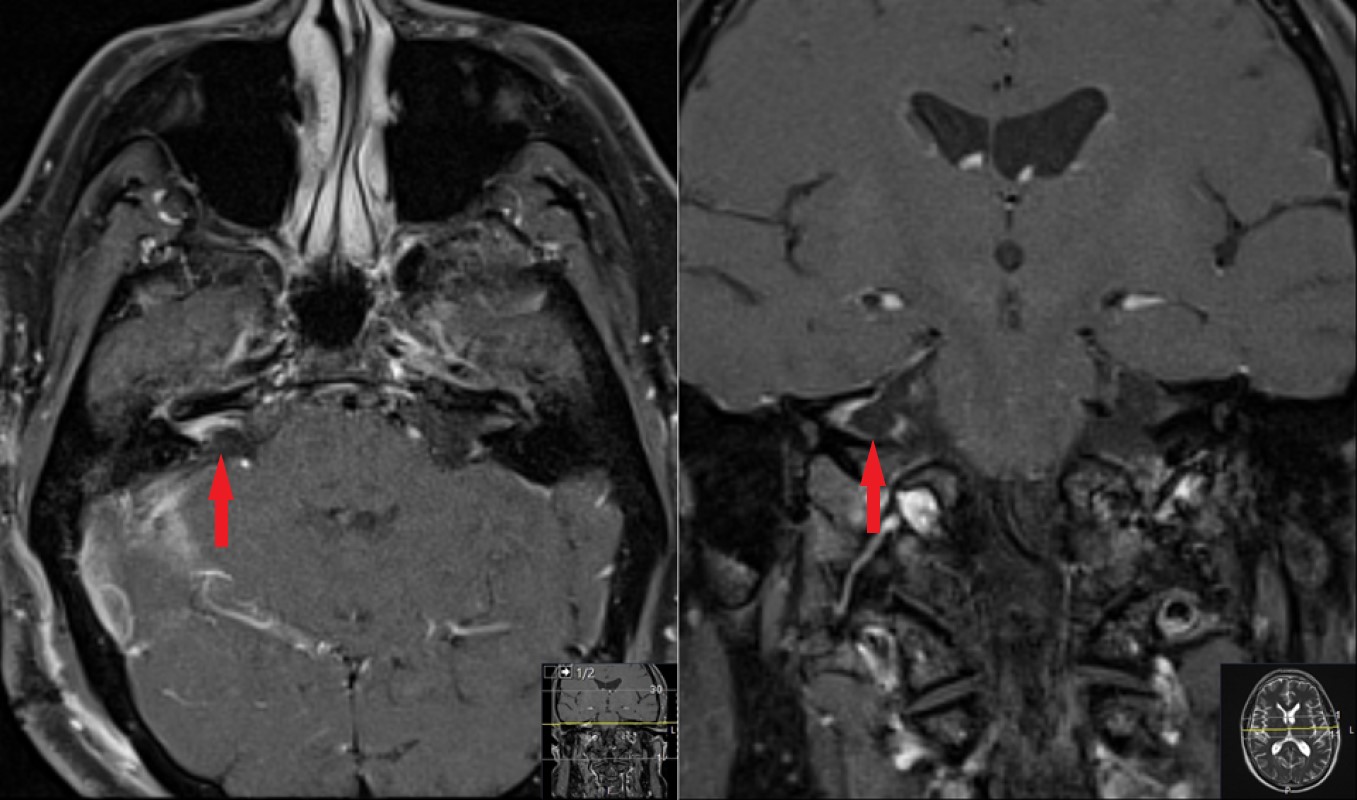

Figure 13Postop MRI, taken about 3 months after surgery, showing resection of the acoustic neuroma.
